PVC FITTING COVER SIZING CHARTS

The two charts listed below provide the PVC Size Number for each different size of pipe insulation. The top chart is for Iron Pipe Size while the bottom chart is for Copper Tubing. The column on the lefthand side is the pipe size while the top row is the thickness of insulation.
Example: 3 x 1 pipe insulation would be a PVC Size #13.

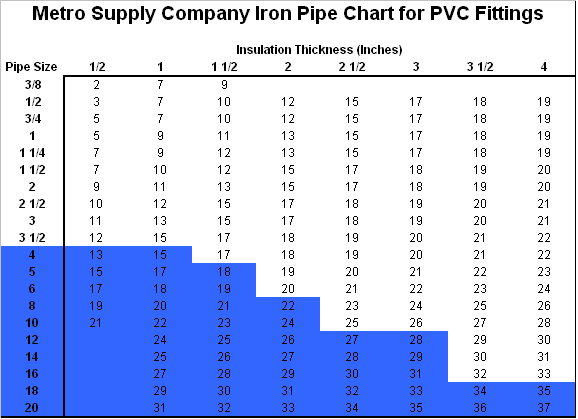

Metro Supply Company Iron Pipe Chart for PVC Fittings

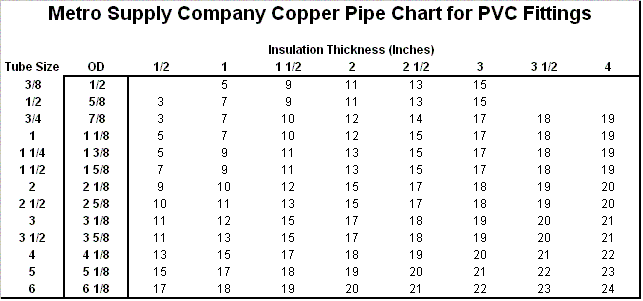

Metro Supply Company Copper Pipe Chart for PVC Fittings
