Johns Manville spin-glas 800 series fiberglass board



Johns Manville Spin-Glas 800 Series Fiberglass Board


Johns Manville 800 Series Spin-Glas® equipment and external duct insulation provides a broad range of solutions to meet your unique application needs. The breadth and depth of our product availability includes Plain, FSK, AP (ASJ), or Ultra (poly-top) faced board, where the facing acts as a vapor retarder. 800 Series Spin-Glas board is easily fabricated for an excellent finished appearance on duct and equipment systems.



DESCRIPTION

800 Series Spin-Glas® duct and equipment insulation is manufactured from inorganic glass fibers bonded together with thermosetting resin.  This rigid fiberglass board insulation is available plain or faced in a variety of densities for use on systems that operate up to 450°F. For faced products, surface temperature should not exceed 150°F . AP, FSK, or Ultra vapor retarder-faced material meets the requirements of NFPA 90A and 90B. Types 813, 814, 815 and 817 provide neat square corners for an excellent finished appearance on duct and equipment systems. Spin-Glas insulation can be readily cut with an ordinary knife and secured with mechanical fasteners and/or adhesives.

APPLICATIONS

800 Series Spin-Glas insulation can be used in plain or faced form
to insulate heating ducts and equipment. Faced 800 Series SpinGlas insulation is designed for systems that operate below ambient temperatures where vapor barrier protection is required. 800 Series Spin-Glas insulation is ideal for application in commercial and industrial heating, air conditioning, power and process equipment. These products are not designed for use inside air distribution duct work or equipment where the insulation will be directly exposed to an airstream. On systems operating below ambient temperatures, all seams should be tightly sealed with quality ASJ, foil or FSK tapes
depending on the desired finish.

Density (pcf): 1.5 - 6.0
Service Temp: 450° F
Thermal Conductivity (k): 0.22-0.24
Recycle Content: 26%

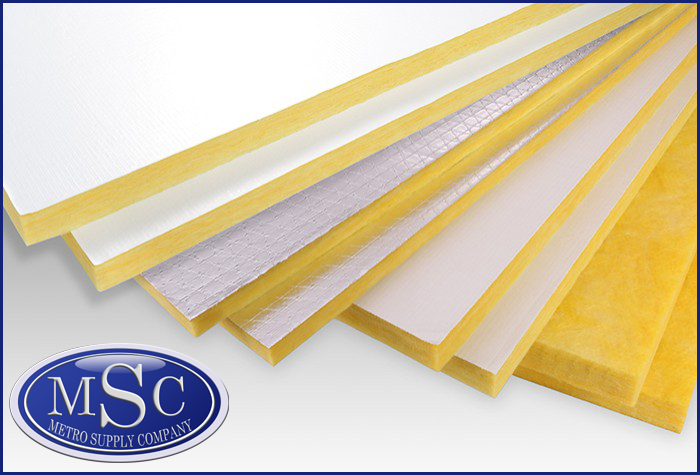

Johns Manville Spin-Glas 800 Series Fiberglass Board

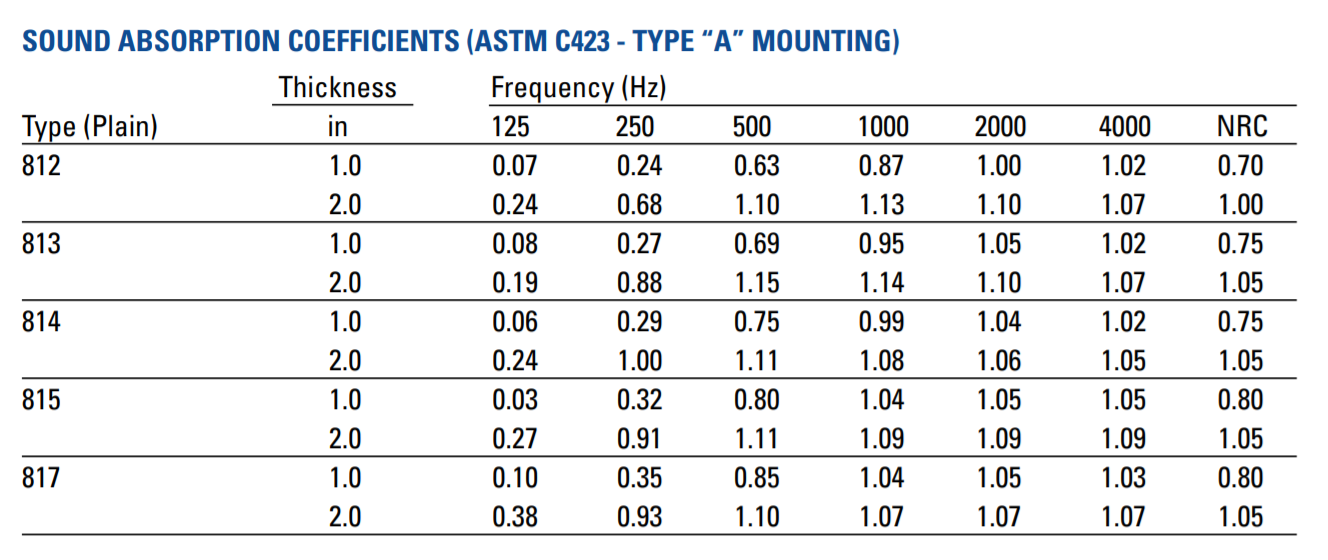

JM Acoustic Data for Spin-Glas 800 Series

FACING INFORMATION

FSK Reinforced Foil and Paper (Foil-Scrim-Kraft): Aluminum foil
reinforced with fiber glass yarn and laminated with fire-resistant
adhesive to kraft paper.

AP (All Purpose): The AP or All Purpose facing is an ASJ comprised
of white kraft bonded to aluminum foil, reinforced with fiber glass yarnand laminated with fire-resistant adhesive to kraft paper.

Ultra (Polypropylene-Scrim-Polyester): The Ultra facing is a white,
poly-top ASJ. It is comprised of a polypropylene exterior, reinforced
with fiber glass yarn and a metalized polyester inner layer. This facing has no paper components.

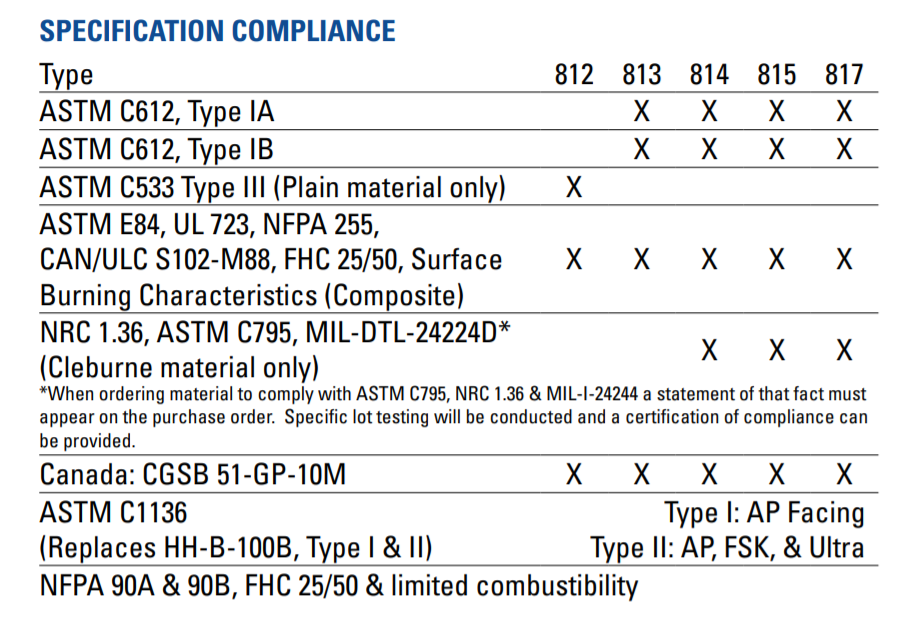

JM Spin-Glas 800 Series Board Specification Compliance


JOHNS MANVILLE SPIN-GLAS 800 SERIES FIBERGLASS BOARD DATASHEET
